Napajanje Chieftec PowerPlay GPU-1200FC, 1200W, 80 PLUS PLATINUM, Modular, 140mm vent

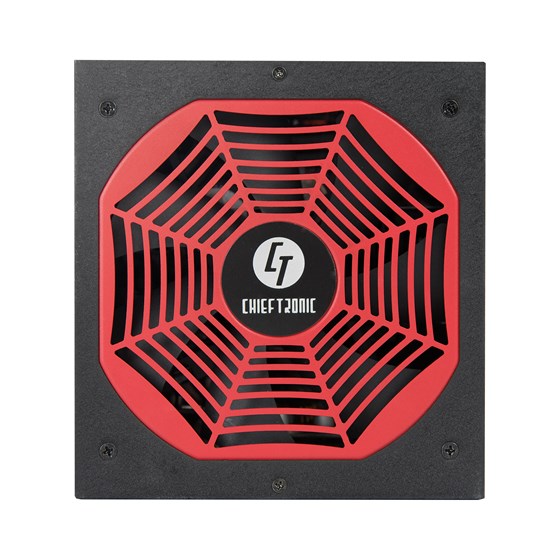

• The Chieftronic PowerPlay series builds on Chieftec’s many years of experience developing top-quality power-supplies • Premium Japanese capacitors for low ripple noise with an eye-catching fan filter design to offer an attractive PSU for users who want a true top-tier product. • Featuring a rugged build quality, the PowerPlay series measures only 160mm in length, therefore comfortably fitting into almost any system supporting ATX format PSU’s and leaving plenty of space for easy cable management. • This combination of efficiency, performance and build design makes the PowerPlay series a true top-of-the-line model leading Chieftronic’s PSU line-up.

• TECHNICAL DATA
• Model: PowerPlay 1200W
• Weight (without/with package): 3.46kg / 3.87kg
• AC Input: 100-240V / 13.0A
• Frequency: 47 - 63Hz
• +5V: 25A
• +3,3V: 25A
• +5V & +3,3V combined: 130W
• +12V1: 100A
• +12V2 --
• +12V1, +12V2 combined: 1200W
• P.F. : >0,9
• - 12V: 0,3A / 3,6W
• +5VSB: 3,0A / 15W
• Maximum Power: 1200W
• Connectors:
• 20+4 PIN ATX: 1
• 8 PIN EPS (4+4): 2
• 8 PIN PCIe (6+2): 8
• SATA: 9
• MOLEX/FLOPPY: 3/1
• Cable length (mm):
• 20+4 PIN ATX: 600
• 8 PIN EPS (4+4): 700/150
• 8 PIN PCIe (6+2): 4x 600/150
• SATA: 3x 500/150/150
• MOLEX/FLOPPY: 700/150/150/150
• Features:
• ATX12V Version: ATX 12V 2.53
• Efficiency: 80+Platinum
• Dimension (DxWxH): 160 mm x 150 mm x 87 mm
• PFC: Active PFC
• Fan: 140mm silent fan
• Security:
• AFC (Automatic Fan speed Control)
• OPP (Over Power Protection)
• OVP (Over Voltage Protection)
• SCP (Short Circuit Protection)
• SIP (Surge & Inrush Protection)
• UVP (Under Voltage Protection)
• Warranty: 60 Months
