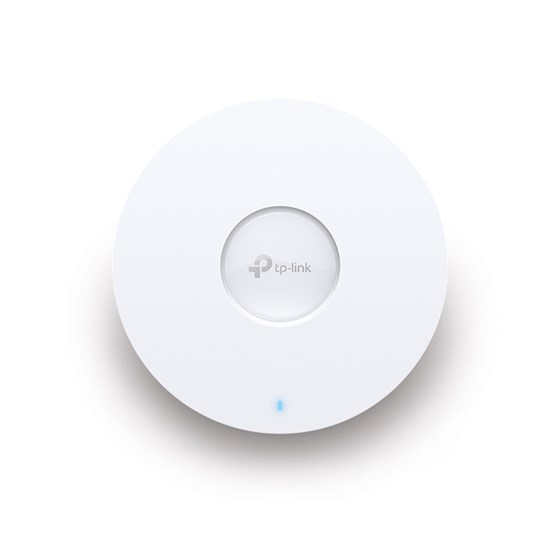

TP-Link EAP653, AX3000 Dua-Band Ceiling Mount Wi-Fi 6 Access Point

• Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds. • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds. • Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app. • 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160. • Seamless Roaming: Video streams and voice calls are unaffected as users move between locations. • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment. • PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations.

• HARDWARE FEATURES
• Interface: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
• Button: Reset
• Power Supply
• 802.3at PoE
• 12V DC (EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC). *Note: DC adapter is not included in the package, and is sold separately
• Dimensions ( W x D x H ): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
• Antenna Type: Internal Omni / 2.4 GHz: 2× 4 dBi / 5 GHz: 2× 5 dBi
• Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting
• WIRELESS FEATURES:
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz: Up to 2402 Mbps / 2.4 GHz: Up to 574 Mbps†
• MU-MIMO
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming §
• Omada Mesh§
• Omada Cloud-Based Controller
• Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Package Contents: EAP653 / Ceiling/Wall Mounting Kits / Installation Guide * Note: DC adapter is not included in the package, and is sold separately.
